Purdue Model Implementation Guide for OT Cybersecurity

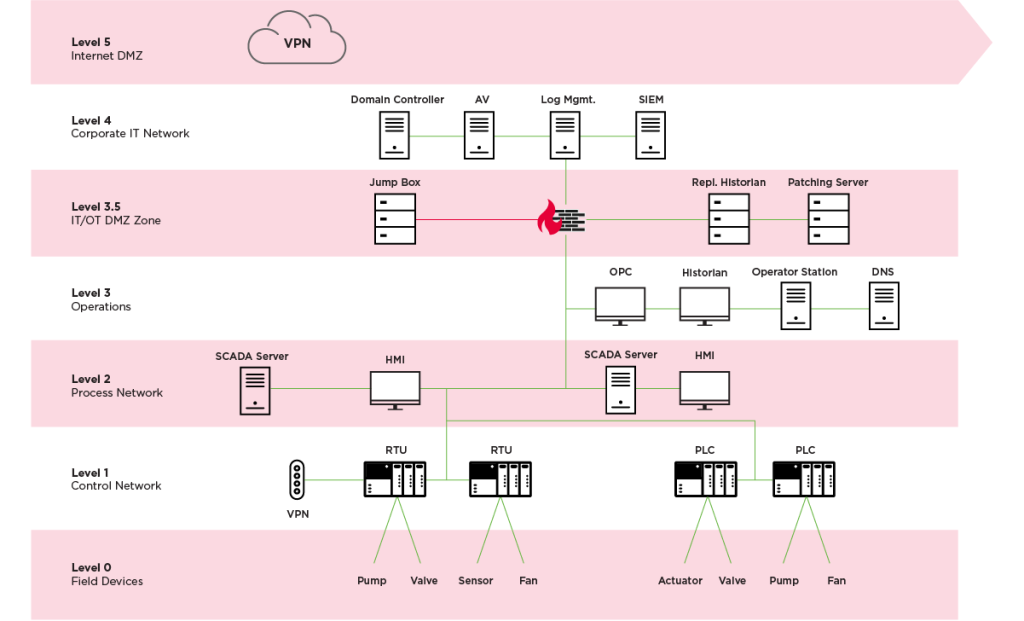

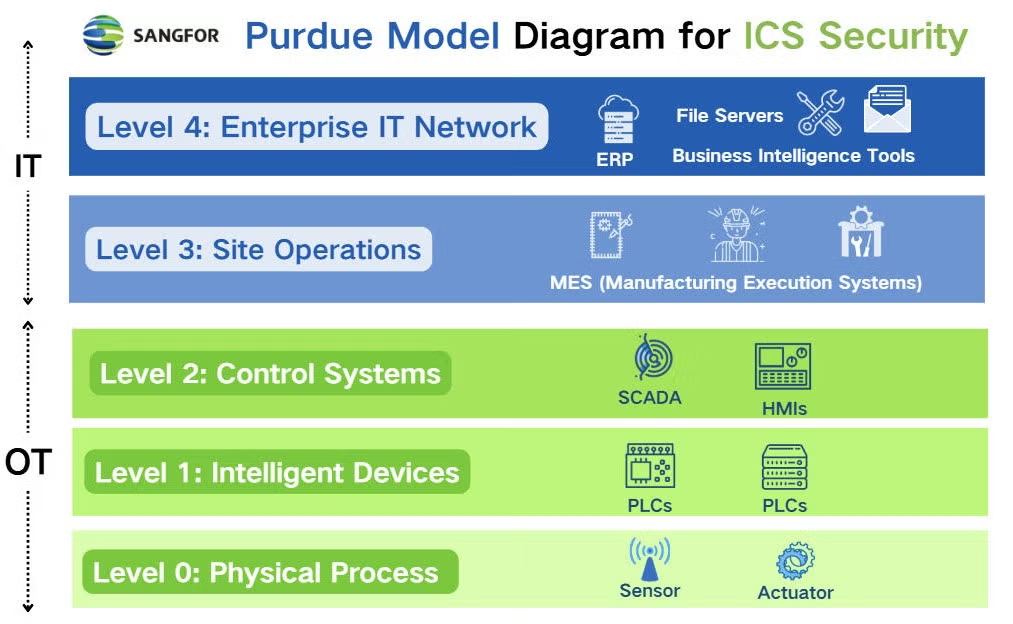

The Purdue Enterprise Reference Architecture (PERA), or Purdue Model, provides a hierarchical framework for segmenting Industrial Control Systems (ICS) and Operational Technology (OT) networks. It ensures secure IT/OT convergence while protecting critical processes from cyber threats. Widely adopted in standards like ISA/IEC 62443, NIST SP 800-82, and Cisco/Rockwell’s Converged Plantwide Ethernet (CPwE), it emphasizes defense-in-depth, network segmentation, and the Industrial Demilitarized Zone (IDMZ/Level 3.5).

Implementation is phased to minimize disruptions in high-availability OT environments (e.g., metals/mining smelters, autonomous operations). Key resources include Cisco’s CPwE Design Guides and Palo Alto Networks’ ICS blueprints.

Step-by-Step Implementation Guide

1. Assessment and Planning
   • Map existing assets, data flows, and network topology to Purdue levels.
   • Identify critical processes, legacy systems, and required IT/OT interactions (e.g., historian data to ERP).
   • Conduct risk/gap analysis; form cross-functional IT/OT team.
   • Define zones/conduits per ISA/IEC 62443 overlay.
2. Asset Inventory and Visibility
   • Deploy OT visibility tools (e.g., Cisco Cyber Vision, Claroty) for passive discovery.
   • Catalog devices by level (PLCs at Level 1, SCADA at Level 2).
   • Baseline normal traffic patterns.
3. Design Logical Zones and Boundaries
   • Assign assets to levels; introduce IDMZ (Level 3.5) as buffer.
   • Plan macro-segmentation (IT vs. OT) first, then micro (within OT cells).
   • Incorporate unidirectional flows (data diodes) for sensitive data.
4. Implement Network Segmentation
   • Deploy firewalls (e.g., next-gen with DPI for OT protocols) at boundaries.
   • Configure restrictive rules: Deny-by-default, whitelist essential ports/protocols (e.g., Modbus, OPC UA).
   • Establish IDMZ with proxies/mirrored services—no direct traversal.
5. Deploy Controls and Services
   • Harden devices (patching where possible, least privilege).
   • Add monitoring (SIEM/SOAR), endpoint protection (OT-safe), and remote access (ZTNA).
   • Overlay Zero-Trust for dynamic verification.
6. Testing and Phased Rollout
   • Test in monitor-mode; simulate traffic/attacks.
   • Pilot one cell/site; validate no downtime.
   • Gradually enforce policies.
7. Ongoing Operations and Maintenance
   • Continuous monitoring, anomaly detection.
   • Regular audits, updates, incident response integration.
   • Train staff; evolve with IIoT/cloud.

Step	Key Actions	Tools/Best Practices	Estimated Timeline
1. Planning	Mapping, risk assessment	Discovery tools	1-3 months
2. Visibility	Inventory baselines	Passive sensors	1-2 months
3. Design	Zones, IDMZ	CPwE guides	1-2 months
4. Segmentation	Firewalls, rules	DPI, data diodes	2-6 months
5. Controls	Hardening, ZT	PAM, UEBA	Ongoing
6. Testing	Simulations	Pen tests	1-3 months
7. Maintenance	Monitoring	SOC integration	Continuous

Benefits and Challenges

• Benefits: Contains breaches (e.g., prevents IT ransomware OT spread), enables secure analytics, supports compliance.
• Challenges: Legacy flat networks, downtime risks—mitigate with phased approach and OT expertise.

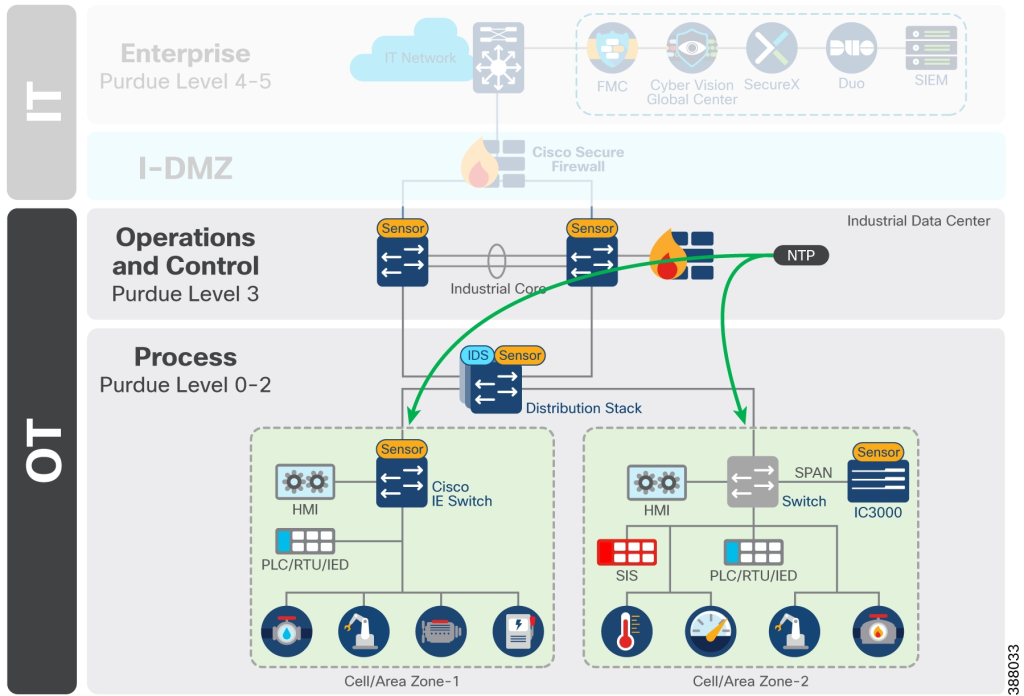

For detailed validated designs, refer to Cisco/Rockwell CPwE guides. This framework is essential for Mining 4.0 resilience amid rising threats.
